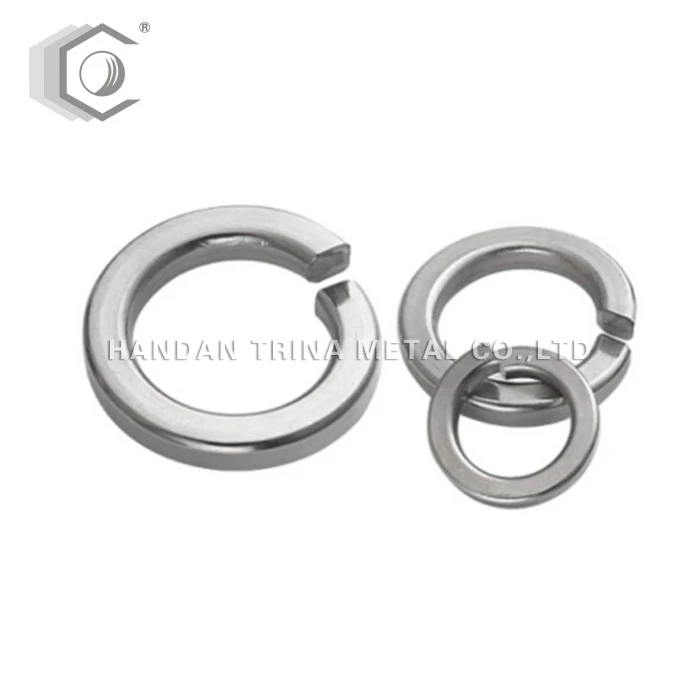

DIN127 Vorþvottavél

d

Lágmark

3.1

3.6

4.1

5.1

6.1

7.1

8.1

10.2

12.2

Hámarksgildi

3.4

3.9

4.4

5.4

6.5

7.5

8.5

10.7

12.7

b

að nafninu til

1.3

1.3

1.5

1.8

2.5

2.5

3

3.5

4

Miaximum gildi

1.4

1.4

1.6

1.9

2.65

2.65

3.15

3.7

4.2

Lágmark

1.2

1.2

1.4

1.7

2.35

2.35

2.85

3.3

3.8

h

að nafninu til

0.8

0.8

0.9

1.2

1.6

1.6

2

2.2

2.5

Hámarksgildi

0.9

0.9

1

1.3

1.7

1.7

2.1

2.35

2.65

Lágmark

0.7

0.7

0.8

1.1

1.5

1.5

1.9

2.05

2.35

H

Lágmark

1.9

1.9

2.1

2.7

3.6

3.6

4.6

5

5.8

Hámarksgildi

2.1

2.2

2.5

3.2

4.2

4.2

5.4

5.9

6.8

k

0.15

0.15

0.15

0.15

0.2

0.2

0.3

1.3

0.4

Þyngd / mpcs (kg)

0.11

0.12

0.18

0.36

0.83

0.93

1.6

2.53

3.82

Upplýsingar

φ14

φ16

φ18

φ20

φ22

φ24

φ27

φ30

φ36

d

Lágmark

14.2

16.2

18.2

20.2

22.5

24.5

27.5

30.5

36.5

Hámarksgildi

14.7

17

19

21.2

23.5

25.5

28.5

31.7

37.7

b

að nafninu til

4.5

5

5

6

6

7

7

8

10

Hámarksgildi

4.7

5.2

5.2

6.2

6.2

7.25

7.25

8.25

10.25

Lágmark

4.3

4.8

4.8

5.8

5.8

6.75

6.75

7.75

9.75

h

að nafninu til

3

3.5

3.5

4

4

5

5

6

6

Hámarksgildi

3.15

3.7

3.7

4.2

4.2

5.2

5.2

6.2

6.2

Lágmark

2.85

3.3

3.3

3.8

3.8

4.8

4.8

5.8

5.8

H

Lágmark

6.8

7.8

7.8

8.8

8.8

11

11

13.6

13.6

Hámarksgildi

8

9.2

9.2

10.4

10.4

13

13

16.1

16.1

k

0.4

0.4

0.4

0.4

0.4

0.5

0.5

0.8

0.8

Þyngd / mpcs (kg)

6.01

8.91

9.73

15.2

16.5

26.2

28.7

44.3

67.3
